The Grönefeld Remontoire features an eight seconds constant force mechanism, ensuring the force serving the balance wheel does not wane. From the mainspring being fully wound to the last minute of the 36 hours of power reserve, when the stop works intervenes, the force never fluctuates. The result is that the amplitude and rate remain consistent, leading to superior precision.
The inspiration for the Grönefeld 1941 Remontoire

Ever since Bart and Tim were young boys they would frequently play to the sounds of the Saint Plechelmus church clock movement, close to the location of the company’s workshops. This movement has always played an important part in the history of Grönefeld.

Johan Grönefeld, the brother’s grandfather, was responsible for maintaining the church clock. When Johan passed away, this responsibility passed to their father, Sjef.

The church clock, created in 1913 by Royal Eijsbouts in the village of Asten, The Netherlands is equipped with a remontoire mechanism. The rationale for the remontoire being used in the church clock was the clock’s display was positioned much higher than the movement, necessitating significant force. However, the magnitude of such force would prove too great for a conventional escapement, hence a remontoire, or constant force mechanism, was fitted. Moreover, the minute hand was calibrated to jump every 30 seconds, breaking any ice which may have formed in cold weather and, in so doing, preventing the clock hands from freezing.

The new 1941 case, recognising the influence of Sjef

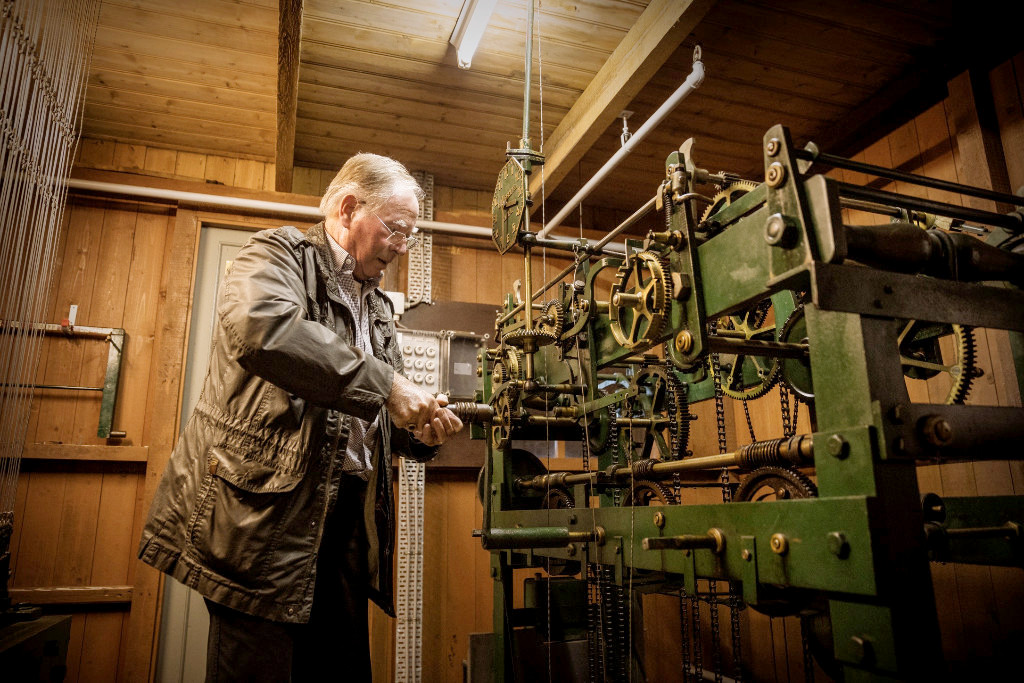

Sjef Grönefeld, adjusts the tower clock in the town hall, near Oldenzaal.

Sjef Grönefeld, adjusts the tower clock in the church in Oldenzaal.

To coincide with the release of the Grönefeld 1941 Remontoire, Bart and Tim are pleased to reveal for the first time, the new 1941 case. This case design, named after the year their father was born, harnesses much craftsmanship and is intended to recognise the positive influence Sjef has had on their lives.

The sculpted case is executed with a specially shaped cutter to create its characteristic hollowed, concave recesses and convex surfaces. In between each additional cutting phase, the case is polished prior to the next stage of milling, ensuring the precisely defined contours of the case are retained. This process proves incredibly time-consuming but the outcome justifies the effort.

The lugs are retained with two hidden titanium screws, positioned inside the case. The lugs can be detached for remedial polishing or, should they have been subject to excessive trauma, they can be replaced.

For the first time, Grönefeld offers the new 1941 case in 18-carat white gold, alloyed with Palladium 150. This form of gold alloy is costlier but obviates the need for rhodium plating, hence its surface will not wear out. Alternatively, a 5N red gold case option is available.

Measuring 39.5mm in diameter, with a restrained height of 10.5mm, the 1941 case is the epitome of elegance, courtesy of its discreet, graceful lines.

Bestowing a sense of calmness

The solid Sterling Silver dial features frosted and satin-grained surfaces, augmented with subtly polished edges. It employs three dial feet rather than the customary two, ensuring a very stable, solid union with the movement beneath.

The extended Lancette hour and minute hands are flame-blued steel and include hand polished centres. The hour circle sits higher than the central dial area, delightfully playing with depths to eye-catching affect.

Each hour is denoted with an applied index which is faceted and diamond cut. The tapering point of each index guides the eyes towards the central area of the dial, aiding interpretation of the highly lucid display of hours and minutes.

In the lower portion of the dial is a small seconds display, this again masterfully plays with depths to deliver a sumptuous aesthetic appearance. A grained circlet, marked with Arabic numerals, provides a fascinating contradistinction with the adjacent frosted surfaces.

Every change of dial depth is accentuated with a highly polished bevelled edge, engaging beautifully with ambient light.

The Grönefeld 1941 Remontoire features a speed brake, positioned at 9 o’clock designed to mitigate shocks to the gear train from the remontoire mechanism stopping. It rotates every eight seconds, adopting a calm tempo and bestowing a sense of calmness.

The dial is signed with “Grönefeld’, ‘Eight Seconds Remontoire’ and ‘Handcrafted”. Indeed, every component is finished by hand to the highest standard.

A movement for purists

From the outset, Bart and Tim always envisaged the Grönefeld 1941 Remontoire as a watch intended to appeal to the most discerning of watch collectors. It was therefore imperative that the movement was befitting of such a timepiece, appealing to the exacting requirements of purists.

The stainless steel bridges replicate the facades of the Dutch houses, termed ‘bell gables’ and reference the homeland of the Horological Brothers, Bart and Tim. The bridges are hand-beveled, evincing a brilliant gleam, while the centres deliver a sublime contrast with their micro-blasted surfaces, adorned with relief engraving.

The new 5-arm, double spoke gear train wheels exhibit a contemporary character, but their circular grained surfaces pay due reverence to fine watchmaking tradition. The movement includes a balance wheel with white gold timing screws and is equipped with a free-sprung over-coil hairspring with triangular stud.

Gold chatons stand testament to the no-compromise specification of this movement whilst mirror polished screws feature chamfered rims and slots. Numerous surfaces glisten, courtesy of mirror-polishing which has been patiently executed by time-served hands. The inventory of different surface decorations will sate the desires of any purist and include snailed, grained, spotted and frosted surfaces.

With so much beauty harnessed within the Grönefeld 1941 Remontoire it only seemed appropriate to share the movement with wearers, equipping the timepiece with a sapphire caseback.

The time-consuming creation of each movement means that production will be limited to only 188 Remontoire movements, each with its own unique serial number, offered in a choice of case material and dial variants.

For more specifics:

Technical Specifications Calibre G-05

Movement dimensions Diameter: 32,0 mm
Thickness: 5,5 mm

Number of parts 258 parts

Number of jewels 36 jewels, partially set in solid gold chatons

Power reserve 36 hours with constant force (stop system)

Remontoire To optimize time keeping a small hairspring is wound every 8 seconds to guarantee a constant force for the escapement. A complex satellite gearing mechanism with hypocycloidal gears, twin ball bearings, pinions and jewelled levers, achieve this.

Balance wheel Variable-inertia balance wheel with four white gold timing screws (diameter 10 mm)

Frequency 21.600 vibrations/hour

Balance spring Free sprung with Phillips terminal over coil curve with triangle hairspring stud

Escapement Jewelled Swiss lever

Main Plate Spotted and ruthenium electroplated brass main plate

Bridges Stainless steel, bevels polished by hand, micro-blasted centre
Circular grain on the top to highlight the bridges shapes and engravings
Relief engraved Grönefeld logo, number of jewels and eight seconds remontoire

Hacking seconds In setting mode the hacking seconds mechanism will be activated

Displays Central Hours and Minutes
Small Seconds at 6 o’clock
Speed regulator at 9 o’clock

Case and Dial specifications

Number of components 66 parts

Case White Gold Au750/Pd150 (Non Rhodium plated) or Red Gold Au750 5N
Domed sapphire crystal on the front with hard antireflective coating on both sides
Flat sapphire crystal on the back with hard antireflective coating on both sides
Engraving: Grönefeld and the individual number
8 White gold security screws

Case dimensions Diameter: 39,5 mm
Thickness: 10,5 mm

Water resistance 3 atmospheres – 30 meters – 100 feet

Crown White gold Au750/Pd150 (Non Rhodium plated) / Red gold Au750 5N engraved with logo

Dial Sterling Silver 925, frosted and satin-grained surfaces

Hands Extended Lancette hands. Flame-blued steel and mirror polished centres. Small poised seconds hand

Strap Hand-sewn ostrich leather with White Gold Au750/Pd150 or Red Gold Au750 5N buckle Engraved with Grönefeld logo

The price for this piece is €44,990 in Stainless Steel € 49.500,- in red gold and € 50.850,- in white gold.

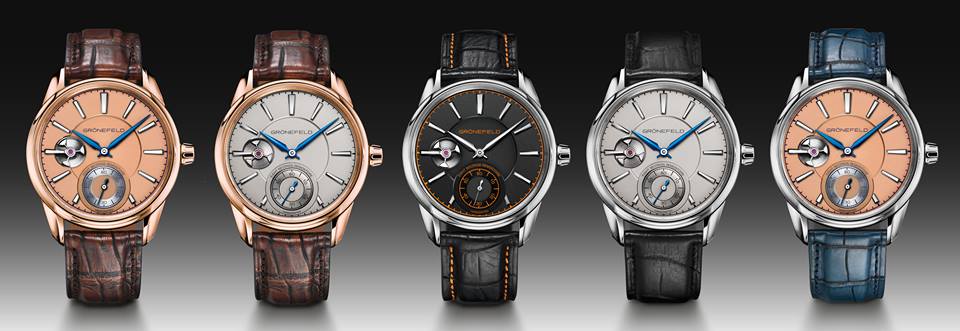

18k Red Gold with Grey dial

18K Red Gold with Salmon Dial

18K White Gold with Salmon Dial

18k White Gold with grey dial

18k White Gold with Black dial-orange details

Grönefeld Remontoire 1941

18KWG with Blue fish scales guilloche

18kWG with baby Blue Guilloche and translucent enamel

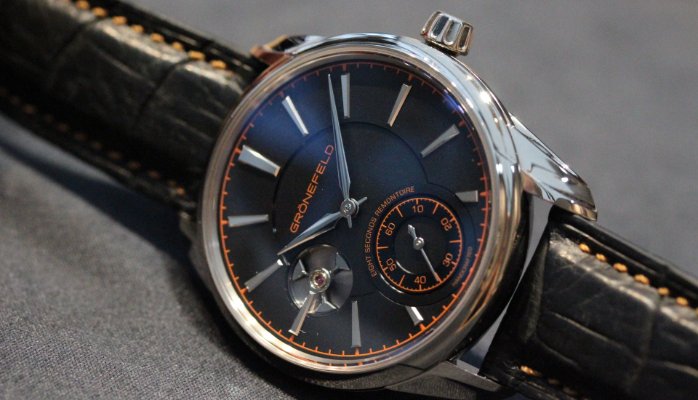

Stainless Steel with anthracite grey guilloche dial by Cadran Voutilainen-blued governor and handset

THE BESPOKE DIAL SERIES- dials by Cadran Voutilainen in either galvanic guilloche (€7,500) or guilloche with translucent enamels(€12,500).

Bart & Tim Grönefeld at Work (video)
